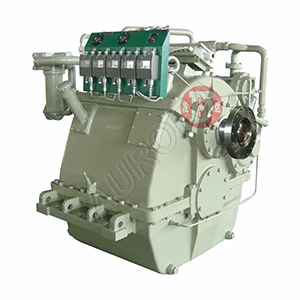

MGS70.76 FADA marine gearbox rated input speed is 400-1000rpm, ratio 2.0000-3.9500 and transmissoin capacity is 6.983kW/rpm.
MGS70.76 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of FADA Gearbox MGS70.76
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-1000 | 2.0000 2.5357 2.9600 3.5000 3.9500 | 6.983 |
Note:
- Input and output are vertically offset.
- Center distance 760mm.
- Rated propeller thrust 700KN.
- Net weight 21500kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
