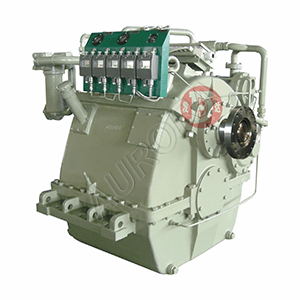

MGS52.59 FADA marine gearbox rated input speed is 400-1200rpm, ratio 2.0000-3.9500 and transmissoin capacity is 3.448kW/rpm.
MGS52.59 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of FADA Gearbox MGS52.59
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-1200 | 2.0000 2.5360 2.9600 3.5000 3.9500 | 3.448 |
Note:
- Input and output are vertically offset.
- Center distance 590mm.
- Rated propeller thrust 300KN.
- Net weight 8000kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
