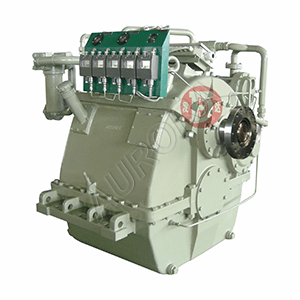

MGS42.45 FADA marine gearbox rated input speed is 400-1600rpm, ratio 1.9714-3.9524 and transmissoin capacity is 1.692kW/rpm.
MGS42.45 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of FADA Gearbox MGS42.45
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-1600 | 1.9714 2.4667 3.0000 3.5217 3.9524 | 1.692 |
Note:
- Input and output are vertically offset.
- Center distance 450mm.
- Rated propeller thrust 220KN.
- Net weight 4200kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
