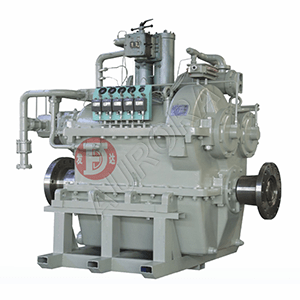

MG70.76A Fada marine gearbox rated input speed is 300-900rpm, ratio 1.9347-5.9891 and transmission capacity is 5.352-16.578kW/rpm.
MG70.76A Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG70.76A
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 300-400 | 1.9347 | 16.578 |
| 300-525 | 2.4578 | 13.050 |
| 300-650 | 2.9155 | 11.000 |
| 300-800 | 3.4436 | 9.314 |
| 300-900 | 3.9500 | 8.120 |
| 300-900 | 4.5309 | 7.078 |
| 300-900 | 5.0609 | 6.337 |
| 300-900 | 5.6617 | 5.665 |
| 300-900 | 5.9891 | 5.352 |
Note:
- Rated propeller thrust 775KN, net weight 21080kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
