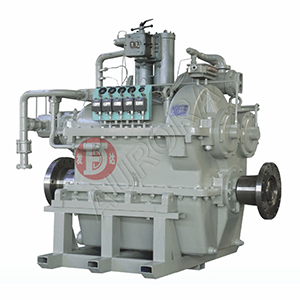

MG70.76 Fada marine gearbox rated input speed is 400-1000rpm, ratio 1.9347-5.9891 and transmission capacity is 4.968-15.392kW/rpm.
MG70.76 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG70.76
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-500 | 1.9347 | 15.392 |
| 400-625 | 2.4578 | 12.116 |
| 400-750 | 2.9155 | 10.214 |
| 400-900 | 3.4436 | 8.647 |
| 400-1000 | 3.9500 | 7.539 |
| 400-1000 | 4.5309 | 6.572 |
| 400-1000 | 5.0609 | 5.884 |
| 400-1000 | 5.6617 | 5.259 |
| 400-1000 | 5.9891 | 4.968 |
Note:
- Rated propeller thrust 750KN, net weight 20300kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
