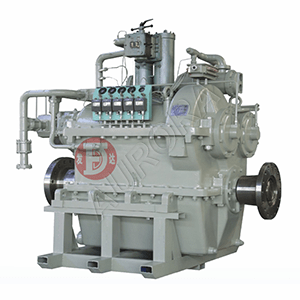

MG66.75 Fada marine gearbox rated input speed is 300-950rpm, ratio 2.0135-5.9286 and transmission capacity is 4.97-14.64kW/rpm.
MG66.75 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG66.75
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 300-475 | 2.0135 | 14.64 |
| 300-595 | 2.5005 | 11.79 |
| 300-715 | 3.0741 | 9.59 |
| 300-830 | 3.4009 | 8.66 |
| 300-950 | 3.9524 | 7.46 |
| 300-950 | 4.5933 | 6.41 |
| 300-950 | 5.0816 | 5.80 |
| 300-950 | 5.6291 | 5.23 |
| 300-950 | 5.9286 | 4.97 |
Note:
- Rated propeller thrust 730KN, net weight 19800kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
