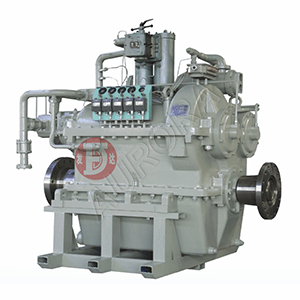

MG63.71 Fada marine gearbox rated input speed is 300-1000rpm, ratio 2.0139-5.9526 and transfer capacity is 4.34-12.84kW/rpm.
MG63.71 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG63.71
| Input Speed (rpm) | Ratio (i) | Transfer Capacity (kW/rpm) |
| 300-500 | 2.0139 | 12.84 |
| 300-625 | 2.5134 | 10.29 |
| 300-750 | 3.0056 | 8.60 |
| 300-875 | 3.5526 | 7.28 |
| 300-1000 | 4.1053 | 6.30 |
| 300-1000 | 4.5515 | 5.68 |
| 300-1000 | 5.0383 | 5.13 |
| 300-1000 | 5.4737 | 4.72 |
| 300-1000 | 5.9526 | 4.34 |
Note:
- Rated propeller thrust 710KN, net weight 18500kg.
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
