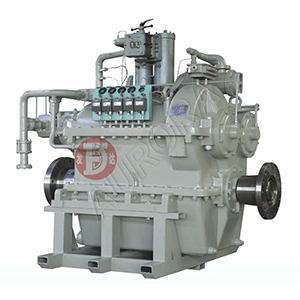

MG60.66 Fada marine gearbox rated input speed is 400-1200rpm, ratio 2.0123-6.1161 and transmission capacity is 3.305-10.054kW/rpm.
MG60.66 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG60.66
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-600 | 2.0123 | 10.054 |
| 400-750 | 2.4990 | 8.091 |
| 400-900 | 2.9844 | 6.774 |
| 400-1050 | 3.4798 | 5.814 |
| 400-1200 | 4.0513 | 4.994 |
| 400-1200 | 4.4838 | 4.510 |
| 400-1200 | 4.9657 | 4.074 |
| 400-1200 | 5.5061 | 3.670 |
| 400-1200 | 6.1161 | 3.305 |
Note:
- Rated propeller thrust 550KN, net weight 13600kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
