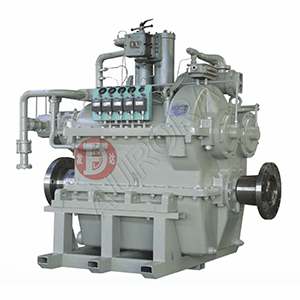

MG52.62 Fada marine gearbox rated input speed is 400-1200rpm, ratio 1.9895-6.0750 and transfer capacity is 2.560-7.818kW/rpm.
MG52.62 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG52.62
| Input Speed (rpm) | Ratio (i) | Transfer Capacity (kW/rpm) |
| 400-600 | 1.9895 | 7.818 |
| 400-750 | 2.4453 | 6.362 |
| 400-900 | 2.9755 | 5.229 |
| 400-1050 | 3.4337 | 4.531 |
| 400-1200 | 3.9558 | 3.935 |
| 400-1200 | 4.5563 | 3.413 |
| 400-1200 | 5.0092 | 3.104 |
| 400-1200 | 5.5125 | 2.824 |
| 400-1200 | 6.0750 | 2.560 |
Note:
- Rated propeller thrust 375KN, net weight 9500kg.
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
