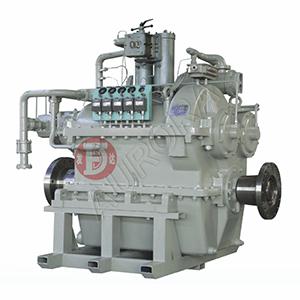

MG49.57 Fada marine gearbox rated input speed is 400-1200rpm, ratio 1.9918-5.9108 and transmission capacity is 2.095-6.218kW/rpm.
MG49.57 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG49.57
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-600 | 1.9918 | 6.218 |
| 400-750 | 2.5313 | 4.892 |
| 400-900 | 3.0375 | 4.077 |
| 400-1050 | 3.4714 | 3.567 |
| 400-1200 | 3.9620 | 3.126 |
| 400-1200 | 4.5209 | 2.739 |
| 400-1200 | 4.9390 | 2.507 |
| 400-1200 | 5.4000 | 2.293 |
| 400-1200 | 5.9108 | 2.095 |
Note:
- Rated propeller thrust 320KN, net weight 7200kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
