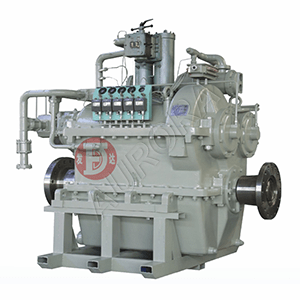

MG45.52 Fada marine gearbox rated input speed is 400-1400rpm, ratio 2.0373-5.9809 and transfer capacity is 1.609-4.723kW/rpm.
MG45.52 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG45.52
| Input Speed (rpm) | Ratio (i) | Transfer Capacity (kW/rpm) |
| 400-700 | 2.0373 | 4.723 |
| 400-900 | 2.5225 | 3.815 |
| 400-1100 | 3.0260 | 3.180 |
| 400-1250 | 3.5044 | 2.746 |
| 400-1400 | 3.9524 | 2.435 |
| 400-1400 | 4.4613 | 2.157 |
| 400-1400 | 5.0473 | 1.906 |
| 400-1400 | 5.5729 | 1.726 |
| 400-1400 | 5.9809 | 1.609 |
Note:
- Rated propeller thrust 290KN, net weight 5700kg.
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
