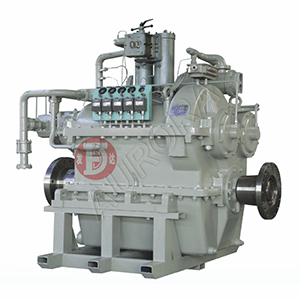

MG45.49 Fada marine gearbox rated input speed is 400-1400rpm, ratio 1.9377-5.9887 and transfer capacity is 1.493-4.614kW/rpm.
MG45.49 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG45.49
| Input Speed (rpm) | Ratio (i) | Transfer Capacity (kW/rpm) |
| 400-700 | 1.9377 | 4.614 |
| 400-900 | 2.5510 | 3.504 |
| 400-1100 | 2.9844 | 2.995 |
| 400-1250 | 3.4798 | 2.569 |
| 400-1400 | 4.0513 | 2.207 |
| 400-1400 | 4.4838 | 1.994 |
| 400-1400 | 4.9657 | 1.800 |
| 400-1400 | 5.5061 | 1.623 |
| 400-1400 | 5.9887 | 1.493 |
Note:
- Rated propeller thrust 290KN, net weight 5300kg.
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
