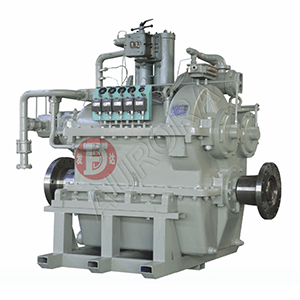

MG36.39 Fada marine gearbox rated input speed is 400-1800rpm, ratio 2.0121-5.9885 and transmission capacity is 0.671-1.998kW/rpm.
MG36.39 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG36.39
| Input Speed (rpm) | Ratio (i) | Transmission Capacity (kW/rpm) |
| 400-900 | 2.0121 | 1.998 |
| 400-1150 | 2.4799 | 1.621 |
| 400-1350 | 3.0274 | 1.328 |
| 400-1580 | 3.5032 | 1.147 |
| 400-1800 | 4.0489 | 0.993 |
| 400-1800 | 4.4591 | 0.901 |
| 400-1800 | 5.0206 | 0.800 |
| 400-1800 | 5.4204 | 0.741 |
| 400-1800 | 5.9885 | 0.671 |
Note:
- Rated propeller thrust 180KN, net weight 2900kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
