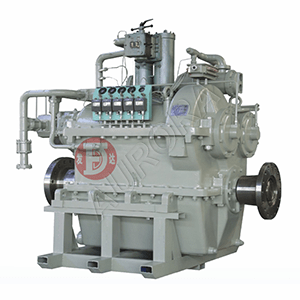

MG32.35 Fada marine gearbox rated input speed is 400-1800rpm, ratio 1.9762-5.9286 and transfer capacity is 0.490-1.470kW/rpm.
MG32.35 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MG32.35
| Input Speed (rpm) | Ratio (i) | Transfer Capacity (kW/rpm) |
| 400-900 | 1.9762 | 1.470 |
| 400-1150 | 2.5082 | 1.158 |
| 400-1350 | 3.0466 | 0.953 |
| 400-1580 | 3.4254 | 0.848 |
| 400-1800 | 3.9524 | 0.735 |
| 400-1800 | 4.4464 | 0.653 |
| 400-1800 | 5.0206 | 0.578 |
| 400-1800 | 5.5333 | 0.525 |
| 400-1800 | 5.9286 | 0.490 |
Note:
- Rated propeller thrust 120KN, net weight 2400kg.
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
