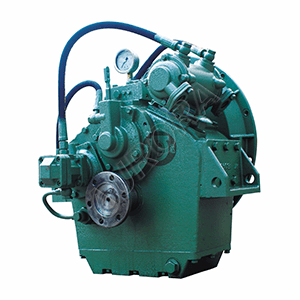

MA125 Fada marine gearbox ratio range is 2.03-4.70 with transfer capacity 0.011-0.020kW/rpm. Input speed is 1500-3000rpm, max. power 60kW at 3000rpm.
MA125 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox MA125
- Input speed 1500-3000rpm
- Center distance 125mm
- Rated propeller thrust 5.5KN
- Flywheel housing SAE 2 3 4
- Mechanical control
- Net weight 120kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| MA125 Ratio | Transfer Capacity (kW/rpm) |
| 2.03 2.46 | 0.020 |
| 3.04 | 0.018 |
| 3.57 | 0.016 |
| 4.05 | 0.014 |
| 4.39 | 0.013 |
| 4.70 | 0.011 |
Note:
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
