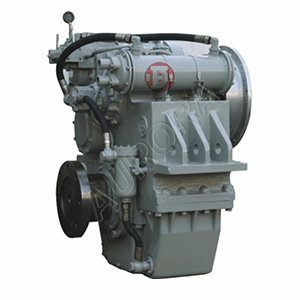

JT600A/1 Fada marine gearbox ratio range is 6.597-14.301 with transfer capacity 0.331-0.441kW/rpm. Input speed is 1000-2100rpm, max. power 926.1kW at 2100rpm.
JT600A/1 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JT600A/1
- Input speed 1000-2100rpm
- Center distance 500mm
- Rated propeller thrust 160KN
- Flywheel housing SAE 00 0 1
- Mechanical control / Electrical control
- Net weight 2000kg
- Rotation direction of output shaft, same with that of input shaft at ahead position
| JT600A/1 Ratio | Transfer Capacity (kW/rpm) |
| 6.597 6.996 7.427 7.895 8.403 | 0.441 |
| 8.957 | 0.426 |
| 9.564 | 0.412 |
| 10.235 | 0.397 |
| 10.950 | 0.382 |
| 11.740 | 0.375 |
| 12.617 | 0.353 |
| 13.598 14.301 | 0.331 |
Note:
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
