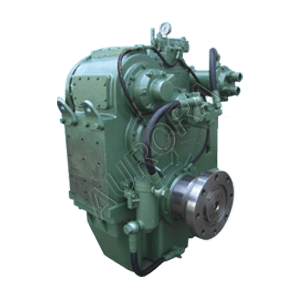

JT450/1 Fada marine gearbox ratio range is 8.0745-14.2105 with transmission capacity 0.220-0.331kW/rpm. Input speed is 1000-2100rpm, max. power 695.1kW at 2100rpm.
JT450/1 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JT450/1
- Input speed 1000-2100rpm
- Center distance 465mm
- Rated propeller thrust 120KN
- Flywheel housing SAE 0 1
- Mechanical control / Electrical control
- Net weight 1560kg
- Rotation direction of output shaft, same with that of input shaft at ahead position
| JT450/1 Ratio | Transmission Capacity (kW/rpm) |
| 8.0745 8.6104 9.1973 | 0.331 |
| 9.8429 | 0.316 |
| 10.4675 | 0.294 |
| 11.2263 | 0.272 |
| 11.8500 | 0.262 |
| 12.4737 | 0.245 |
| 13.5000 | 0.230 |
| 14.2105 | 0.220 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
