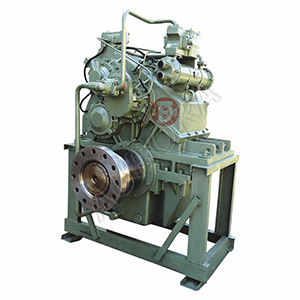

JT1380/6 Fada marine gearbox ratio range is 11.0526-15.9721 with transfer capacity 0.800-1.030kW/rpm. Input speed is 1000-1800rpm, max. power 1854kW at 1800rpm.
JT1380/6 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JT1380/6
- Input speed 1000-1800rpm
- Center distance 722mm
- Rated propeller thrust 190KN
- Flywheel housing
- Mechanical control / Electric control
- Net weight 4650kg
- Rotation direction of output shaft, same with that of input shaft at ahead position
| JT1380/6 Ratio | Transfer Capacity (kW/rpm) |
| 11.0526 11.4211 11.7719 12.1579 12.5632 12.9684 | 1.030 |
| 13.4377 | 0.994 |
| 13.8643 | 0.963 |
| 14.4094 | 0.927 |
| 14.8597 | 0.898 |
| 15.4954 | 0.862 |
| 15.9721 | 0.800 |
Note:
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
