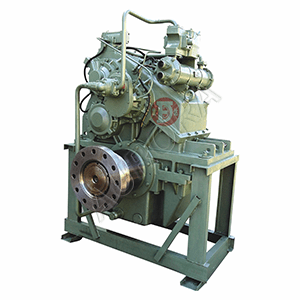

JT1380/3 Fada marine gearbox ratio range is 7.5243-11.5180 with transfer capacity 0.814-1.014kW/rpm. Input speed is 1000-1800rpm, max. power 1825.2kW at 1800rpm.
JT1380/3 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JT1380/3
- Input speed 1000-1800rpm
- Center distance 580mm
- Rated propeller thrust 190KN
- Flywheel housing
- Mechanical control / Electric control
- Net weight 3750kg
- Rotation direction of output shaft, same with that of input shaft at ahead position
| JT1380/3 Ratio | Transfer Capacity (kW/rpm) |
| 7.5243 7.9579 8.4276 8.9382 | 1.014 |
| 9.4952 | 0.987 |
| 10.1053 | 0.928 |
| 10.7763 | 0.870 |
| 11.5180 | 0.814 |
Note:
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
