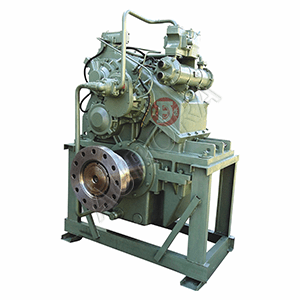

JT1380/2 Fada marine gearbox ratio range is 9.5357-22.2588 with transmission capacity 0.410-1.014kW/rpm. Input speed is 1000-1800rpm, max. power 1825.2kW at 1800rpm.
JT1380/2 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JT1380/2
- Input speed 1000-1800rpm
- Center distance 760mm
- Rated propeller thrust 190KN
- Flywheel housing SAE 00 0
- Mechanical control / Electric control / Pneumatic control
- Net weight 4600kg
- Rotation direction of output shaft, same with that of input shaft at ahead position
| JT1380/2 Ratio | Transmission Capacity (kW/rpm) |
| 9.5357 10.0459 | 1.014 |
| 10.5952 | 0.956 |
| 11.1886 | 0.927 |
| 11.8313 | 0.846 |
| 12.5300 | 0.772 |
| 13.2922 | 0.743 |
| 14.1602 | 0.706 |
| 15.0215 | 0.669 |
| 15.9649 | 0.625 |
| 17.0026 | 0.592 |
| 17.2838 | 0.581 |
| 18.2871 | 0.552 |
| 19.3860 | 0.515 |
| 19.9141 | 0.500 |
| 20.5947 | 0.490 |
| 21.5232 | 0.424 |
| 22.2588 | 0.410 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
