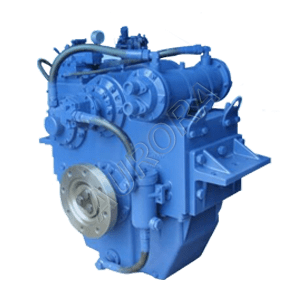

JD600A Fada marine gearbox ratio range is 4.18-6.05 with transmission capacity 0.400-0.480kW/rpm. Input speed is 1000-1800rpm, max. power 864kW at 1800rpm.
JD600A Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox JD600A
- Input speed 1000-1800rpm
- Center distance 415mm
- Rated propeller thrust 90KN
- Flywheel housing SAE 00 0
- Mechanical control / Electrical control
- Net weight 1300kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| JD600A Ratio | Transmission Capacity (kW/rpm) |
| 4.18 4.43 | 0.480 |
| 4.70 | 0.460 |
| 5.00 5.44 | 0.440 |
| 5.71 6.05 | 0.400 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
