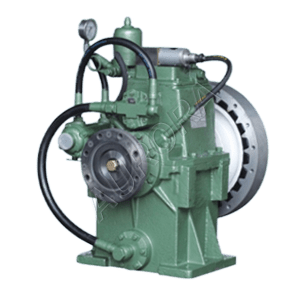

FADA FDL250F Hydraulic Clutch input speed is 1000-2500rpm with transfer torque 2.5kN·m, transmission capacity is 0.262kW/rpm.
FDL250F Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
Technical Data of FADA FDL250F Hydraulic Clutch
| Model | FDL250F |
| Input Speed | 1000-2500 rpm |
| Transfer Torque | 2.5 kN·m |
| Transmission Capacity | 0.262 kW/rpm |
Note:
- Dimension: 554*425*635mm.
- Net weight 210kg.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
