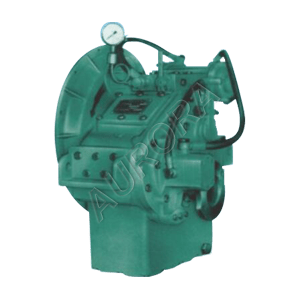

FD142 Fada marine gearbox ratio range is 1.97-5.47 with transmission capacity 0.013-0.030kW/rpm. Input speed is 1500-2500rpm, max. power 75kW at 2500rpm.
FD142 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox FD142
- Input speed 1500-2500rpm
- Center distance 142mm
- Rated propeller thrust 8.5KN
- Flywheel housing SAE 2 3
- Mechanical control
- Net weight 140kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| FD142 Ratio | Transmission Capacity (kW/rpm) |
| 1.97 2.52 3.03 | 0.030 |
| 3.54 | 0.026 |
| 3.95 | 0.023 |
| 4.50 | 0.019 |
| 5.06 | 0.016 |
| 5.47 | 0.013 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
