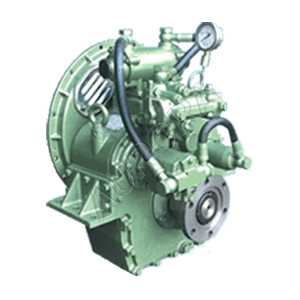

D50 Fada marine gearbox ratio range is 1.97-5.88 with transmission capacity 0.027-0.039kW/rpm. Input speed is 1000-2500rpm, max. power 97.5kW at 2500rpm.
D50 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox D50
- Input speed 1000-2500rpm
- Center distance 170mm
- Rated propeller thrust 16KN
- Flywheel housing SAE 1 2 3
- Mechanical control / Electrical control
- Net weight 175kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| D50 Ratio | Transmission Capacity (kW/rpm) |
| 1.97 2.52 3.04 3.95 | 0.039 |
| 4.50 5.06 | 0.031 |
| 5.47 5.88 | 0.027 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
