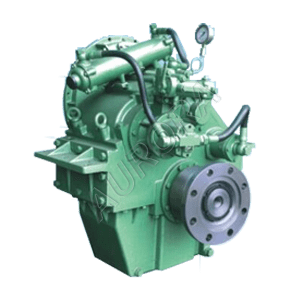

D345 Fada marine gearbox ratio range is 4.050-5.471 with transmission capacity 0.184-0.257kW/rpm. Input speed is 750-2500rpm, max. power 642.5kW at 2500rpm.
D345 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox D345
- Input speed 750-2500rpm
- Center distance 315mm
- Rated propeller thrust 50KN
- Flywheel housing SAE 0 1
- Mechanical control / Electrical control
- Net weight 600kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| D345 Ratio | Transmission Capacity (kW/rpm) |
| 4.050 | 0.257 |
| 4.556 | 0.243 |
| 4.941 | 0.221 |
| 5.471 | 0.184 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
