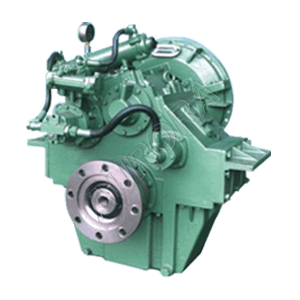

D345/1 Fada marine gearbox ratio range is 5.52-7.06 with transmission capacity 0.147-0.200kW/rpm. Input speed is 750-2500rpm, max. power 500kW at 2500rpm.
D345/1 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox D345/1
- Input speed 750-2500rpm
- Center distance 355mm
- Rated propeller thrust 50KN
- Flywheel housing SAE 0 1
- Mechanical control / Electrical control
- Net weight 680kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| D345/1 Ratio | Transmission Capacity (kW/rpm) |
| 5.52 | 0.200 |
| 5.90 | 0.184 |
| 6.56 | 0.169 |
| 7.06 | 0.147 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
