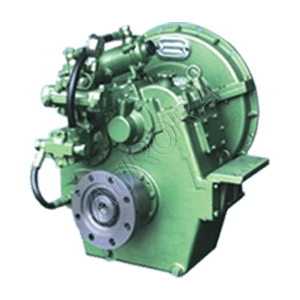

D145 Fada marine gearbox ratio range is 3.04-5.81 with transmission capacity 0.070-0.100kW/rpm. Input speed is 750-2000rpm, max. power 200kW at 2000rpm.
D145 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox D145
- Input speed 750-2000rpm
- Center distance 225mm
- Rated propeller thrust 30KN
- Flywheel housing SAE 1
- Mechanical control / Electrical control
- Net weight 336kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| D145 Ratio | Transmission Capacity (kW/rpm) |
| 3.04 3.62 4.11 | 0.100 |
| 4.65 | 0.093 |
| 5.06 | 0.088 |
| 5.47 | 0.077 |
| 5.81 | 0.070 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
