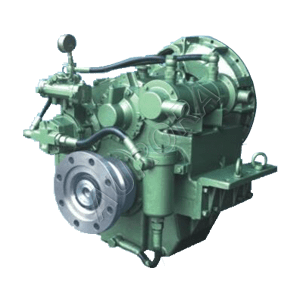

450 Fada marine gearbox ratio range is 2.04-4.06 with transmission capacity 0.280-0.331kW/rpm. Input speed is 1000-2100rpm, max. power 695.1kW at 2100rpm.
450 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox 450
- Input speed 1000-2100rpm
- Center distance 264mm
- Rated propeller thrust 82KN
- Flywheel housing SAE 0 1
- Mechanical control / Electrical control
- Net weight 660kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| 450 Ratio | Transmission Capacity (kW/rpm) |
| 2.04 2.50 3.00 3.42 | 0.331 |
| 4.06 | 0.280 |
Note:
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transmission capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
