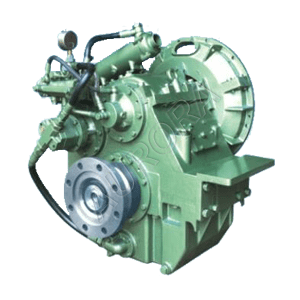

345 Fada marine gearbox ratio range is 3.00-5.00 with transfer capacity 0.147-0.243kW/rpm. Input speed is 750-2500rpm, max. power 607.5kW at 2500rpm.
345 Scope of Supply
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Oil pump
- Input coupling
- Output coupling
- Mounting bracket
- CCS certificate
Technical Data of Fada Gearbox 345
- Input speed 750-2500rpm
- Center distance 264mm
- Rated propeller thrust 50KN
- Flywheel housing SAE 0 1
- Mechanical control / Electrical control
- Net weight 530kg
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
| 345 Ratio | Transfer Capacity (kW/rpm) |
| 3.00 | 0.243 |
| 3.53 | 0.221 |
| 4.10 4.47 | 0.184 |
| 5.00 | 0.147 |
Note:
- Transfer capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting a model, the actual transfer capacity should be smaller than the data listed.
- Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
